Background

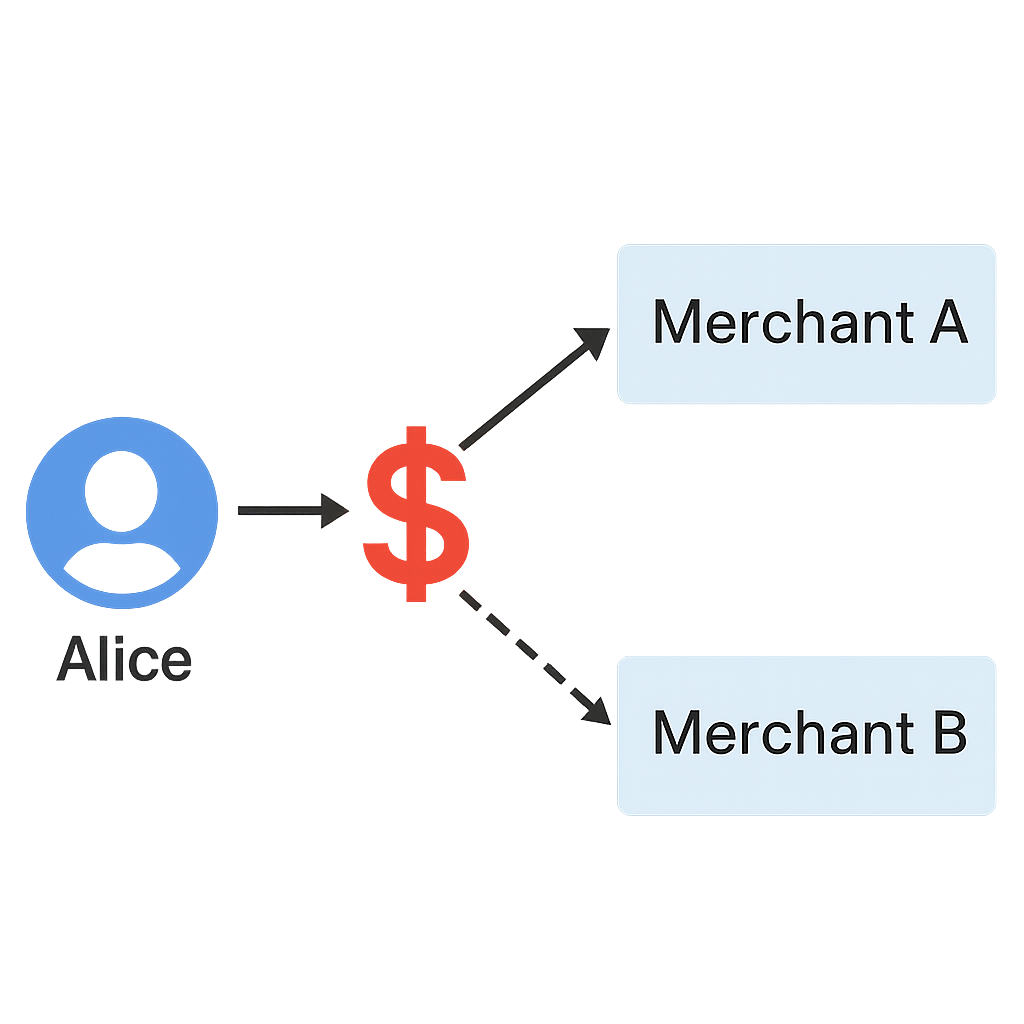

Double-spending is when someone tries to use the same funds more than once. It’s a fundamental problem in finance that appears in various guises. In traditional banking, this looks like check kiting—manipulating the float time between accounts to cover overdrafts. A notorious example is Najeeb Khan’s $180M fraud, where he exploited bank timing windows to fund a lavish lifestyle at the expense of clients.

In crypto, Ethereum Classic suffered multiple 51% attacks in 2020 where attackers rewrote transaction history and double-spent over $9M. This showed that public blockchains without secure consensus can be vulnerable too.

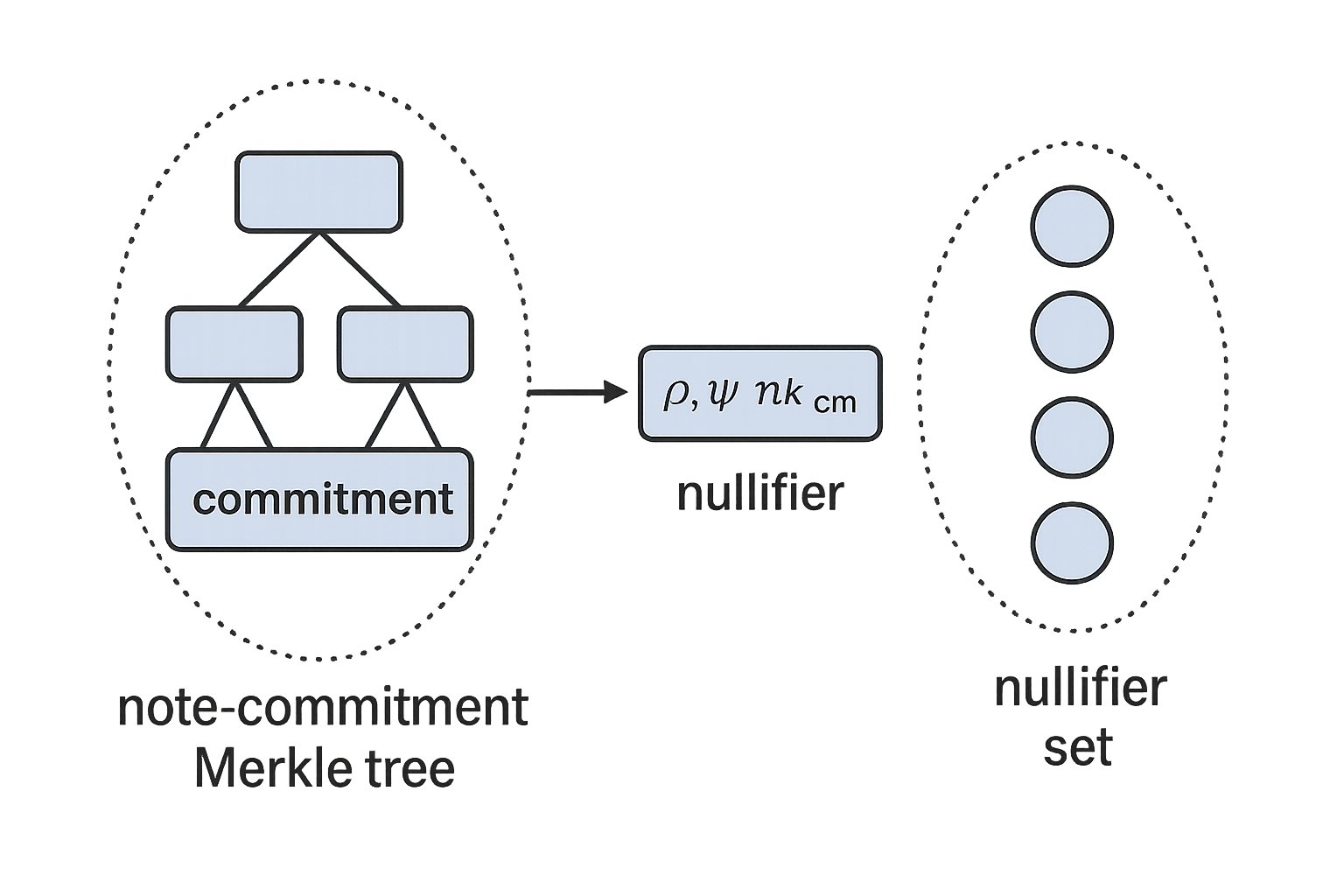

Zcash presents a more complex challenge: its shielded transactions reveal nothing about sender, receiver, or value. To prevent double-spending while preserving privacy, Zcash enforces two cryptographic constraints:

1. Private inclusion proof: The note¹ must be in the note-commitment Merkle tree.
2. Public non-inclusion proof: The note’s nullifier must not be in the nullifier set.

Why Zcash uses a public non-inclusion check

When a new shielded note is created, only its commitment is revealed. This is appended to the global note-commitment Merkle tree, while the note’s actual value and recipient stay private. Because the tree is append-only and doesn’t track spending, a second tag—the nullifier—ensures each note is spent at most once.

A nullifier is a deterministic, unlinkable fingerprint of a note. It’s computed using a pseudorandom function (PRF) keyed by the note’s secret. Only the owner can derive the nullifier, and each note has exactly one².

“A transaction is not valid if it would have added a nullifier to the nullifier set that already exists in the set.”

The nullifier is publicly revealed and checked against the nullifier set, which is updated each block along with the Merkle tree. This allows the network to reject double-spends while learning nothing about the note itself.

Private membership proof

Zcash uses zk-SNARKs to enforce both constraints—commitment inclusion and nullifier consistency—without revealing which note is spent. Each proof is ~1–2 kB, verifiable in milliseconds, and works even for light clients³.

1. The private link created inside the zk-SNARK

Merkle inclusion:
The prover supplies the note commitment $cm$⁴ and a Merkle authentication path $\pi$ as private witness data. The circuit enforces:

where $\rho_t$ is the anchor, a public input representing the Merkle root at block height $t$ ⁵. This confirms that $cm$ appears somewhere in the historical note-commitment tree.

Nullifier computation:
In the same circuit, the prover recomputes the nullifier using:

where $(nk, \psi)$ are secrets derived from the note. The output nullifier $nf$ is made public and bound to the same anchor and commitment.

This internal linkage ensures that the SNARK proves consistency between the revealed nullifier and the private note it was derived from—without revealing anything about the note itself.

2. How the on-chain check works

Each transaction includes the anchor $\rho_t$ and the nullifier $nf$ in the public input of the proof. Once the SNARK verifies, every full node checks:

• That the nullifier $nf$ is not already in the nullifier set $N(t)$.
• If the check passes, the block updates: $$N(t+1) = N(t) \cup \{nf\}$$

This ensures that every nullifier appears at most once—enforcing one-time spendability.

3. Why the two links suffice

• Existence: The Merkle equation certifies that a real commitment $cm$ already sits in the tree whose root is $\rho_t$.
• Uniqueness: The PRF binds a single nullifier $nf$ to that $cm$, and consensus allows each $nf$ to appear only once.

Hence, any valid transaction must:

• Reference some existing note (via inclusion of $cm$),
• And cannot reuse that note (since its $nf$ would already be in $N$).

The inclusion proof and the non-inclusion check are mathematically fixed through the shared variables $(cm, \rho_t, nf)$—inside the SNARK and on-chain.

Limitations of Merkle Trees

Incremental Merkle trees⁶ are the classic way Zcash records shielded notes⁷. They have a fixed depth $d$, so the ledger can accept at most $2^d$ commitments before a migration is needed. Every new note becomes a fresh leaf, and the tree’s collision-resistant hashing lets a prover later show inclusion with a $d$-hash path. That path is constant-size and efficient, but the tree’s state grows forever⁸.

Sharding helps, but doesn’t solve the problem

A natural next step is to shard the Merkle tree. Instead of one monolith, the ledger maintains many sub-trees (e.g., $2^{32}$-leaf trees). When a shard fills, a new one is opened, and a small root-of-roots tree tracks the current shard roots. A note’s inclusion path now includes:

• A short intra-shard Merkle path
• One additional hash to reach the root-of-roots

This design keeps proof sizes small and reduces wallet update overhead: clients only need to track changes in shards that contain their notes ⁹.

But even this is a temporary fix. The root-of-roots is itself incremental and will eventually fill. Historical paths must still be updated as long as the shard is active. State pruning remains difficult because every note ever minted must remain accessible. As a result, ledger size and wallet sync bandwidth grow linearly with protocol lifetime.

Why a set non-inclusion accumulator changes everything

A set non-inclusion accumulator offers a simpler approach to tracking spent notes.

While incremental Merkle trees work perfectly well for inclusion proofs, they cannot efficiently support non-inclusion proofs. The accumulator solves this by folding all notes into a constant-size accumulator value $A_t$ that can handle non-inclusion proofs (and can be easily extended to support inclusion proofs as well). Every insertion is a succinct polynomial-commitment update, and old accumulator states can be discarded—because an IVC (incremental verifiable computation) chain certifies correctness across updates.

The key advantage is simplicity: while Merkle trees require separate handling for commitments and nullifiers, the accumulator provides a single cryptographic primitive that handles non-inclusion proofs. This means we can use the same system for the nullifier set, and extend it to handle note commitments if needed.

The magic lies in the accumulator’s recursive structure: each update witnesses that a vector of notes was inserted without including a particular element $x$. The non-membership claim is upheld step-by-step, proving that each polynomial inserted lacked $x$ as a root—meaning $x$ was not present. This transforms the problem into one of recursive algebra, not storage.

At the end, proving non-inclusion (“this nullifier was never inserted up to $A_t$”) requires only checking that a single polynomial (the one folded into the accumulator) does have $x$ as a root.

• The accumulator’s size never grows, no matter how many notes are inserted
• There’s no depth cap or leaf index to exhaust
• Each IVC step is just a few hashes and group ops—efficient even onchain
• You don’t need to track historical state prior to the last $k$ epochs—as long as all proofs spanning that range have been generated, the earlier accumulator data can be safely discarded

In short: shielded anonymity can grow indefinitely, with no migrations or tree maintenance. This is the foundation for Project Tachyon’s accumulator design—a simpler system that handles non-inclusion proofs efficiently.

Implementation

The accumulator starts in a trivial state $A_0 = \langle(1,0,0,\ldots), G\rangle$ and is updated every time we insert a vector of field elements $\mathbf a_i = (a_{i,1},\dots,a_{i,k}) \subset \mathbb F$. After many updates we want to show, for every step in a chosen range $[j,\,m)$, that the inserted vector never contained some element $v$. Instead of storing all past vectors, we fold them into a single curve-point accumulator whose size never grows.

The magic is that while we track more and more nullifiers internally—building a bigger polynomial each time—we only store a single point on-chain. This point acts as a cryptographic summary of all nullifiers we’ve seen, like a Merkle root but without the tree. This means the blockchain state stays tiny, even as we process millions of transactions.

1. Insertion: folding one vector of roots

For the current step we first build its vanishing polynomial

then make a Pedersen commitment $P_i$ to the coefficient vector. One Fiat–Shamir challenge $h=H(A_i,P_i)$ lets us hop to the next state

pub fn insert(roots: &[Fr], a_prev: G1Affine, r: Fr) -> Result<State> {
    let poly   = poly_from_roots(roots);           //  a_i(X)
    let p_i    = commit(&poly.coeffs, r)?;         //  P_i
    let h      = hash_points_to_fr(&a_prev, &p_i); //  H(A_i,P_i)
    let next   = a_prev * h + p_i;                 //  A_{i+1}
    Ok(State { Accumulator: next.into_affine(), Commitment: p_i })
}

Key point: no matter how many vectors we add, Accumulator stays a single point.

2. Proving that a fresh value $v$ was not among today’s roots

The verifier will accept only if the polynomial we committed doesn’t vanish at $v$.

1. Evaluate once: $\alpha = a_i(v)$. If $\alpha=0$ the proof must abort (v was a root).

2. Shift the commitment so the shifted polynomial does vanish at $v$: $P'_i = P_i - [\alpha]G_0$

3. Use a second challenge $h' = H(S_i, P'_i)$ to hop the non-membership accumulator.

pub fn check_non_membership(
        roots: &[Fr], v: Fr, r: Fr, s_prev: G1Affine) -> Result<State>
{
    let poly   = poly_from_roots(roots);
    let alpha  = evaluate_poly(&poly.coeffs, v);     // α = a_i(v)
    assert!(!alpha.is_zero());                       // must be non-root

    let p_i    = commit(&poly.coeffs, r)?;           // P_i
    let p_ip   = p_i - POINTS[0] * alpha;            // P'_i
    let h_p    = hash_points_to_fr(&s_prev, &p_ip);  // h′ = H(S_i,P′_i)
    let next   = s_prev * h_p + p_ip;                // S_{i+1}
    Ok(State { Accumulator: next.into_affine(), Commitment: p_i })
}

Because $a_i(v)\neq0$, the shifted commitment now hides a polynomial whose only root at $v$ is the one we artificially created—exactly the witness we need for non-membership.

3. Non-membership across a range with IVC

We can create a recursive (IVC) proof with base case is $(A_j,S_j)$ and repeat the above step for every $i \ge j$ to make a ranged claim.

• In the circuit we start from snapshot $(A_j,S_j)$.
• At each iteration we witness $(P_i, \alpha_i)$ and apply the check_non_membership hop.
• The accumulator moves from $(A_i,S_i)$ to $(A_{i+1},S_{i+1})$.
• Only the current state crosses the IVC boundary; earlier data are discarded.

After $m-j$ hops the verifier sees $(A_m,S_m)$. If S_m opens to zero at $v$, then—by induction—every intermediate polynomial was proven to evaluate non-zero at $v$. Hence $v$ never appeared in any root vector $\mathbf a_j$.

4. Why this matters for Zcash-style nullifier checks

• O(1) state: Accumulator is one point $\rightarrow$ no Merkle depth cap.
• Forget history: once the IVC proof exists, we can delete every old vector.
• Cheap per block: each hop is a couple of hashes and group operations
• Scalable non-membership: perfect for showing a nullifier never appeared, without keeping the nullifier set on-chain.

In practice, replacing Zcash’s append-only Merkle trees with this accumulator would remove anchor leakage and tree maintenance, while still proving that a nullifier is unique.

Conclusion

A vector-commitment accumulator gives Zcash a simpler approach to tracking spent notes: constant-size state that efficiently handles non-inclusion proofs (and can be extended to support inclusion proofs). This eliminates depth caps and tree migrations, while still providing the same security properties as Merkle trees.

Real-world deployment still has open questions—metadata privacy, lightweight witness updates, etc. Check out my implementations of this accumulator below.

For the full design sketch, see Sean Bowe’s HackMD.

Appendix

The vector-commitment accumulator guarantees existence (the value really was inserted) and uniqueness (no two different vectors can open to the same commitment at the same index) for two independent reasons:

Existence in the IVC non-membership chain

For non-inclusion, each IVC step asserts $p_t(z)\neq0$. Because the polynomial $p_t$ encodes exactly the vector inserted at step $t$, the statement ”$z$ was not in ${\bf v}_t$” is true iff the evaluation is non-zero. The final recursive proof therefore certifies that for every step in the range, $z$ was not a coordinate of any inserted vector. That is an existential statement about the entire history, achieved with only $O(1)$ verifier work.

Uniqueness of a nullifier-style opening

If we swap the vector commitment for one that derives a nullifier‐like output (e.g. include the index $j$ and value $v_j$ in a PRF), the uniqueness follows the same logic: the PRF output is a function of a single valid opening, and the binding of the commitment ensures no second, distinct opening can produce the same output without violating discrete-log or collision-resistance.

In short, the algebraic binding of the commitment bases anchors existence, while their linear independence enforces uniqueness—properties that survive each IVC update and give the accumulator the same double-spend resistance Merkle nullifiers provide, but with constant-size state and proofs.
